NoMachine Client v5 Configuration

1. Click ‘New’ to create a new connection

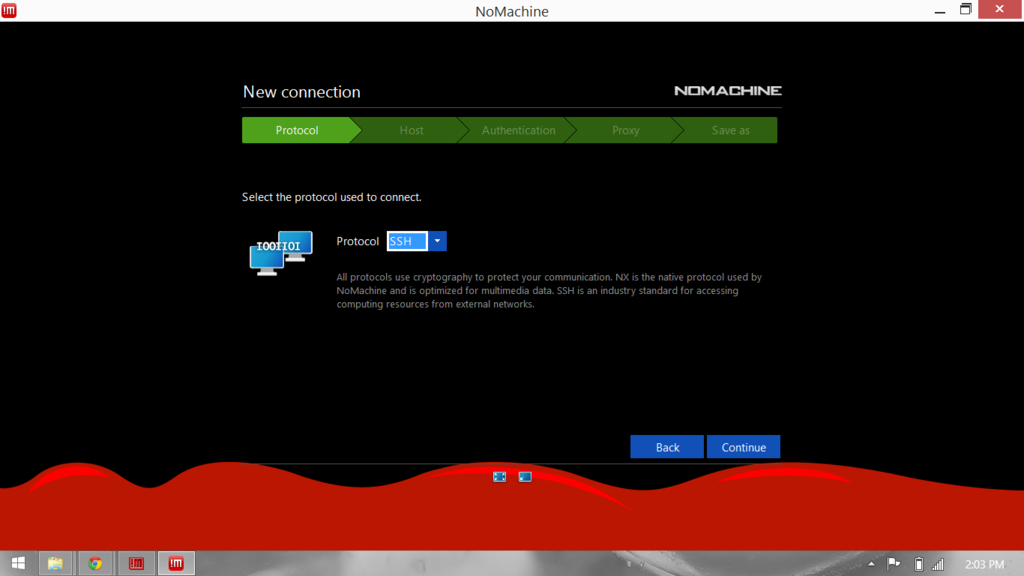

2. Select ‘protocol: ‘SSH’

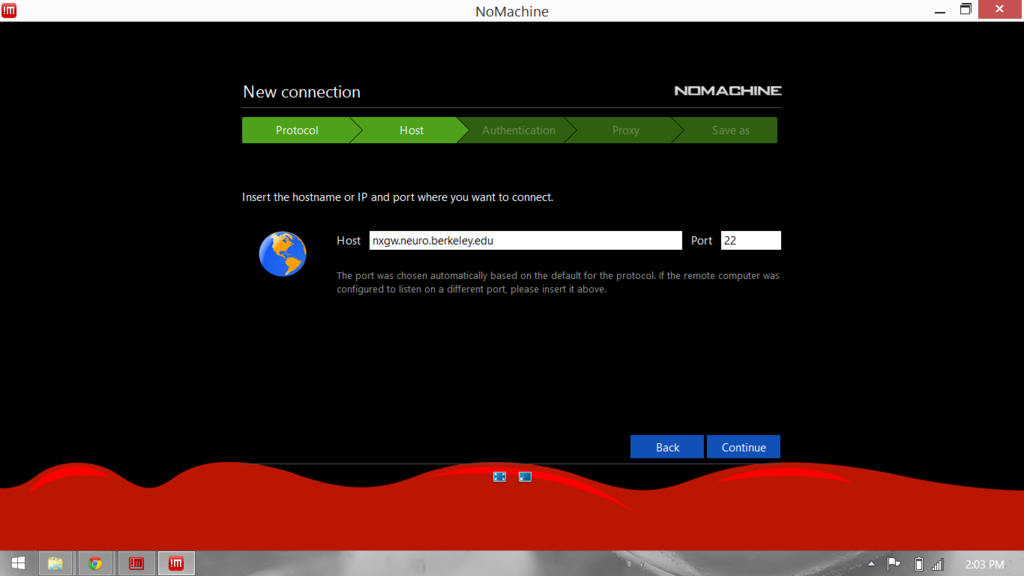

3. Specify hostname ‘nxgw.neuro.berkeley.edu and ‘port 22’

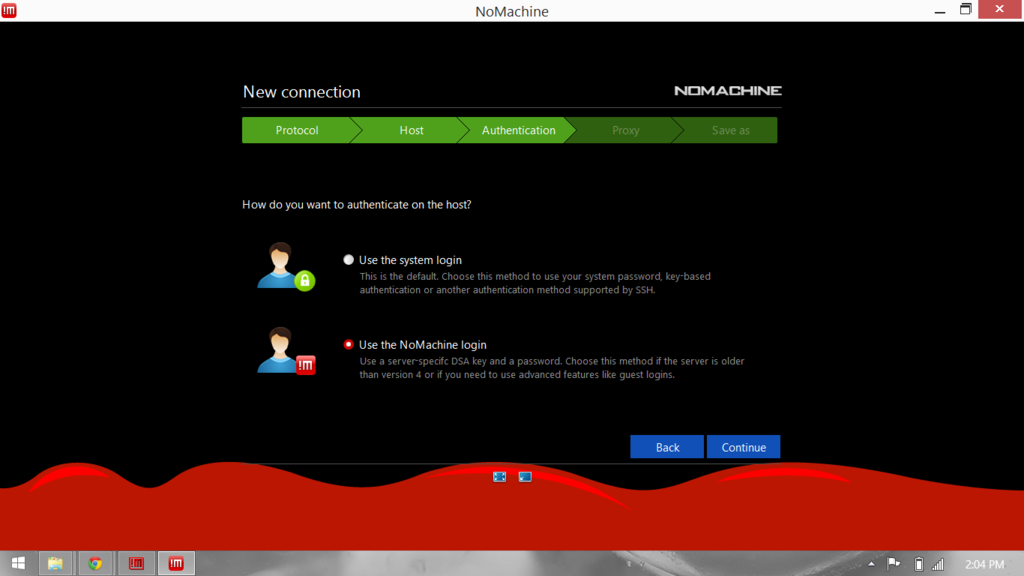

4. Select ‘Use the NoMachine Login’



5. With a web browser, go to https://www.neuro.berkeley.edu/_downloads/nx_DSA_key.txt. Authenticate with your cluster username/password. Use the web browser’s File -> Save option to save the file to your desktop/laptop. Save the file as a text (.txt) file.

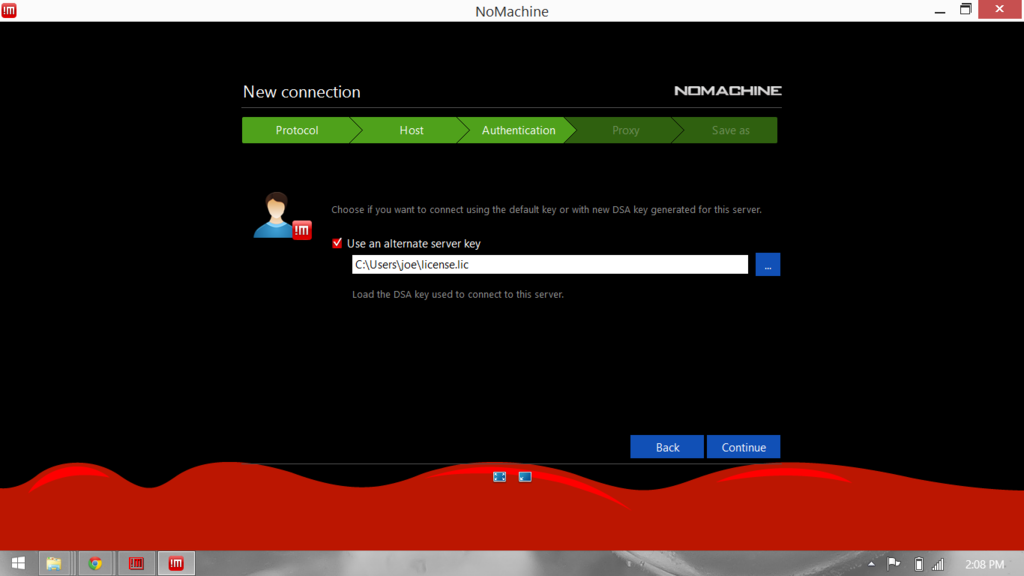

6. Return to the NoMachine client. In the ‘alternate server key’ field, specify location of the file you just saved.

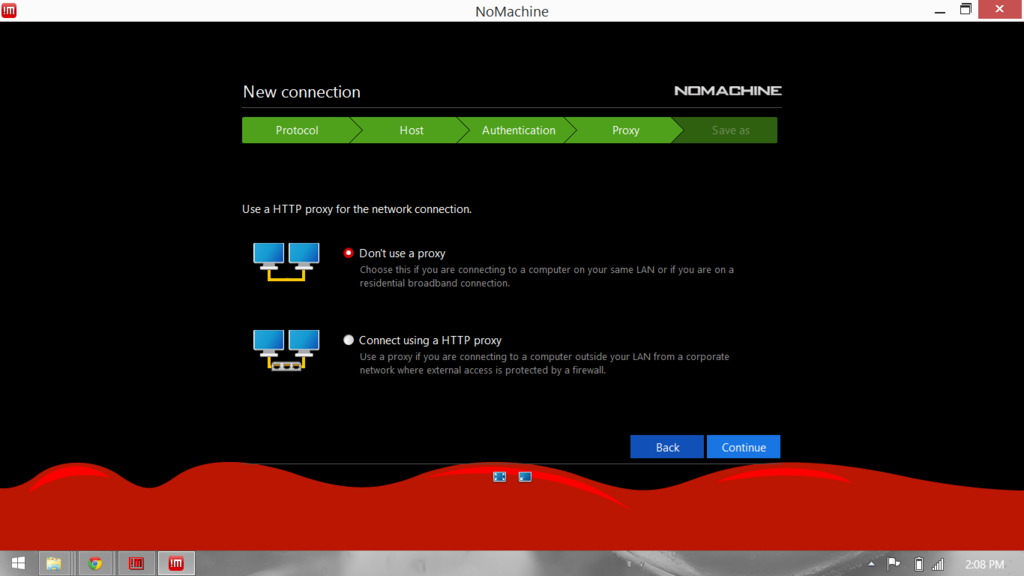

7. Select ‘Don’t use a proxy’



8. See to the using NX instructions for tips and shortcuts.
